Valid For
- Volvo Chassis – All-new Volvo VNL
- Mack Chassis – Mack Pioneer, All-new Mack Anthem
NOTE: The telematics connectors discussed below are in context of aftermarket-installed telematics displays. There is no link between these connectors and the infotainment display.
The new Mack and Volvo truck platform is standard with two RP-1226 connectors (14-PIN FCI connectors) and one 12-pin Yazaki connector that are available at no cost to customers to use in the aftermarket for telematics equipment data. All connectors have industry-standard pin locations for 12V power, 12V ignition, ground, CAN High, and CAN Low. However, there are cases where other factory-installed equipment may utilize one or more of these connections. The graphic below identifies all connector locations and page 2 identifies other factory-installed options that utilize each connector, making open usage unavailable in the aftermarket.
Note: The telematics connectors discussed below are in context of aftermarket-installed telematics displays. There is no link between these connectors and the infotainment display.
The image below identifies optional factory-installed equipment that uses the RP-1226 telematics connectors. The 12-pin Yazaki connector is always open for aftermarket telematics data.
Related Telematics Equipment Option: P9FADX – DASH MOUNT DEVICE PREP

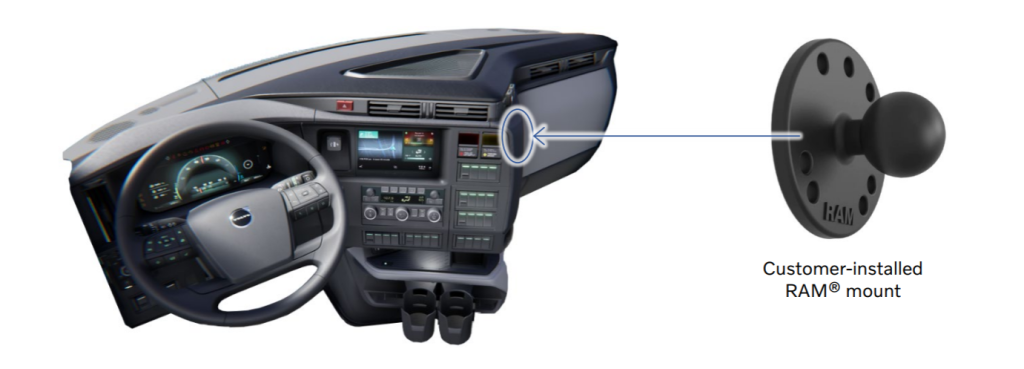

This includes three pre-tapped M4.8 x 32mm holes in the dash trim panel for a customer-installed RAM® Mount, designed to support telematics displays, tablets, cell phones or similar equipment. Prep kit also includes three mounting screws with captive washers.
Dash mounting location is within easy reach of the driver. Designed to support a maximum device weight of 2.25 lbs (1.02 kg).
